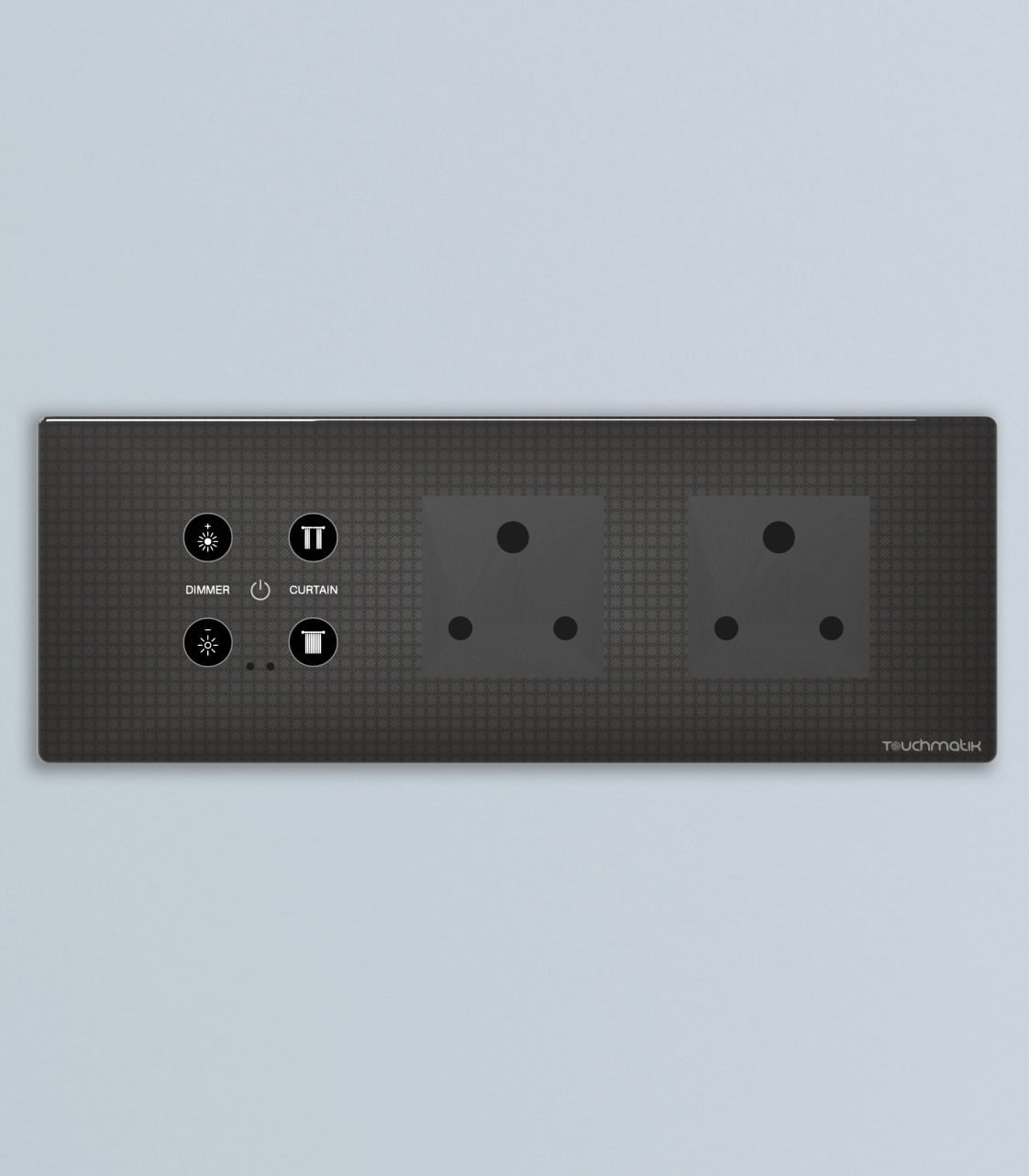

Topaz 1 Dimmer + 1 Curtain + 2 Socket + Master
₹12,500.00
Fitment Box:- 6M
Glass size :-Length: 238 mm, Width: 86 mm
Two output with 1 dimmable load and 1 curtain motor, leading edge phase cut dimmer, socket 6Amp or 16 Amp, smart capacitive touch, proxy wakeup for switches, WiFi 2.4 Ghz and RF remote.
Touchmatik uses Norisys socket in this panel.
Description
This model gives number of output two with output contact rating for 1 dimmable load and 1 curtain motor. The load type supports leading edge phase cut dimmer with open and close curtain motor of 100 to 150W and socket 6Amp or 16 Amp. The switch type is smart capacitive touch with size 238x86 and input supply 90V to 250V AC. The front fascia uses 3mm rounded edge toughened glass for smooth touch use. Proximity sensor gives proxy wakeup for switches with wake up range upto 1 foot for daily access and easy operation.
WiFi enabled mobile app based 2.4 Ghz control and RF remote support make the panel suitable for home and room use. The layout includes dimmer, curtain and two socket icons for clear control. The model gives stable output response for dimmable load, curtain and socket functions with simple use.
Additional information
| Number of Output |
Two |
|---|---|
| Output Contact Rating |
1 Dimmable Load + 1 Curtain Motor |
| Load Type |
Leading edge phase cut dimmer with Open & close Curtain Motor of 100 to 150W & Socket 6Amp. or 16 Amp. |
| Switch type |
Smart Capacitive Touch |
| Proximity Sensor |
Proxy wakeup for Switches |
| Wake Up range |
Upto 1 foot |
| WiFi Enabled |
Mobile App based 2.4 Ghz |
| Input Supply |
90V to 250V AC |
| Front Fascia |
3mm rounded edge toughened glass |
Reviews (0)
Delivery and Guidelines
Delivery:
- Delivery after 100% payment receipt.
- Immediate delivery if material is in stock.
- Maximum delivery time: 6-7 working weeks.
Guidelines:
- Dealers must not sell the product above the MSP (Maximum Selling Price).
- Dealers may add service charges for installation.
- Dealers are responsible for service for 1 years and 6 months.
- For project orders, KIPL must be informed about the customer and the quoted price.
- After installation of the switchboard, Keetronics is not responsible for any further switchboard-related issues.
- Keetronics will ensure the slot is accurate only for Norisys sockets (6 Ampere).
Warranty
- Ensure regulated and protected power supply.
- One-year free replacement warranty for manufacturing defects.
- Warranty is void if. The keyboard is damaged using a pen, screwdriver, or any object other than fingertips. Proper power regulation is not maintained.
- Issues caused by unregulated power supply will be chargeable
