Quartz

Quartz :

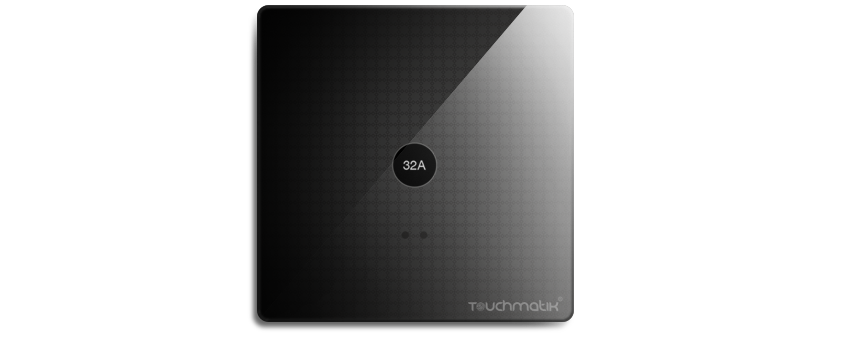

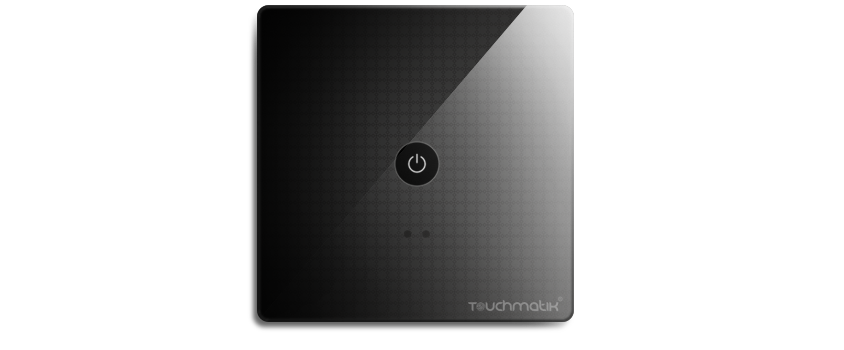

Single Switch

A single touch makes it all. Simply soft touch to light up your geysers, Air conditioner or your balcony light.

Additionally featured with remote control and app control,life is easy with this smart switch.

Small and smart in its looks with sleek identity, it attracts the eyes of everybody.

Just fit it and let your guest envy your choice.


Applications

Home
Hospital
Hotels
Office
Resorts

Product Features

  • Smooth, one-touch On/Off operation.
  • Aesthetically appealing to suit the exterior appearance.
  • Illuminated iconic representation form easy identification in the day and night time.
  • Sleek modular backend.
  • Easy cleaning and Maintenance.
  • Easy installation..no separate wiring required.
  • No mechanical wear & tear as compared to normal switches.
  • Shockproof switching.

Technical Specification

  • Input Voltage :90 to 270 VAC 50 Hz
  • Protections: Short circuit, Thermal & Overload Shutdown.
  • Working Temp: 00 to 500 C.
  • Operating Humidity: 20% to 85% RH non-condensing.
  • Rated Load:Resistive Load 100W.
  • Capacitive Load: LED and CFL 100 W.
  • Service life:50,000 operations (for Relay).

Mechanical Fitment

  • Keyboard Dimensions:90.3 mm x 90.3 mm.
  • Fitment:1/2 Module Box - 6890 07.

Product Display

Recommended Products

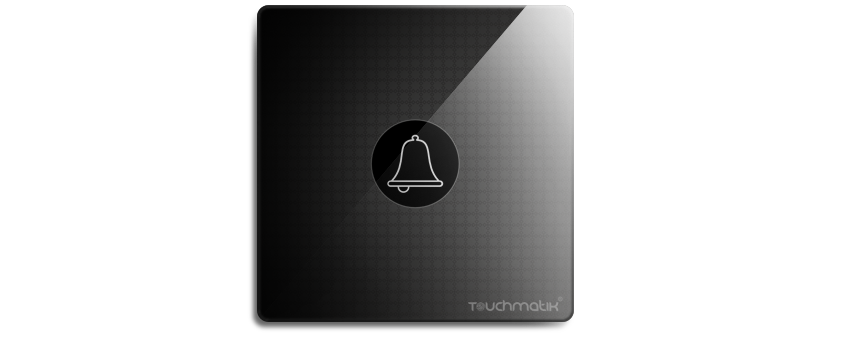

Door Bell
Topaz
Emerald
Sapphire
Spinel
Coral
Citrine
Designer-Switches

Installation Guidelines

Remove the black plate from the Switch Board.
Strip off 10 mm(approx 1 cm) of the load wire ends that are to be connected. Note that excess stripping will load to shorts between two wires.Connect the load wires as per the stickers mentioned on the box.Ensure that there are no wire strand protruding outside the connectors.
Align the loose cables in the concealed box properly. Please the switch board over the conceal box.
Screw fit the switch board to the conceal box (Use the screws provided along with the switch board). Ensure that there is no stress on the load wire connections and box fitment.
Check the whole assembly by switching on the loads one by one.Press fit the top black cover plate to the switch board.
Ensure the proper fitment of the swtich board vertically and horizontally.check the whole switch board functionally. Check the switch board for Remote operation if applicable.

Note : All Switches are compitable with Remote Control / Alexa / Google Home / Smart App ( Andriod / IOS ). Integration & Installation of above attracts extra cost @ actual.
